Products

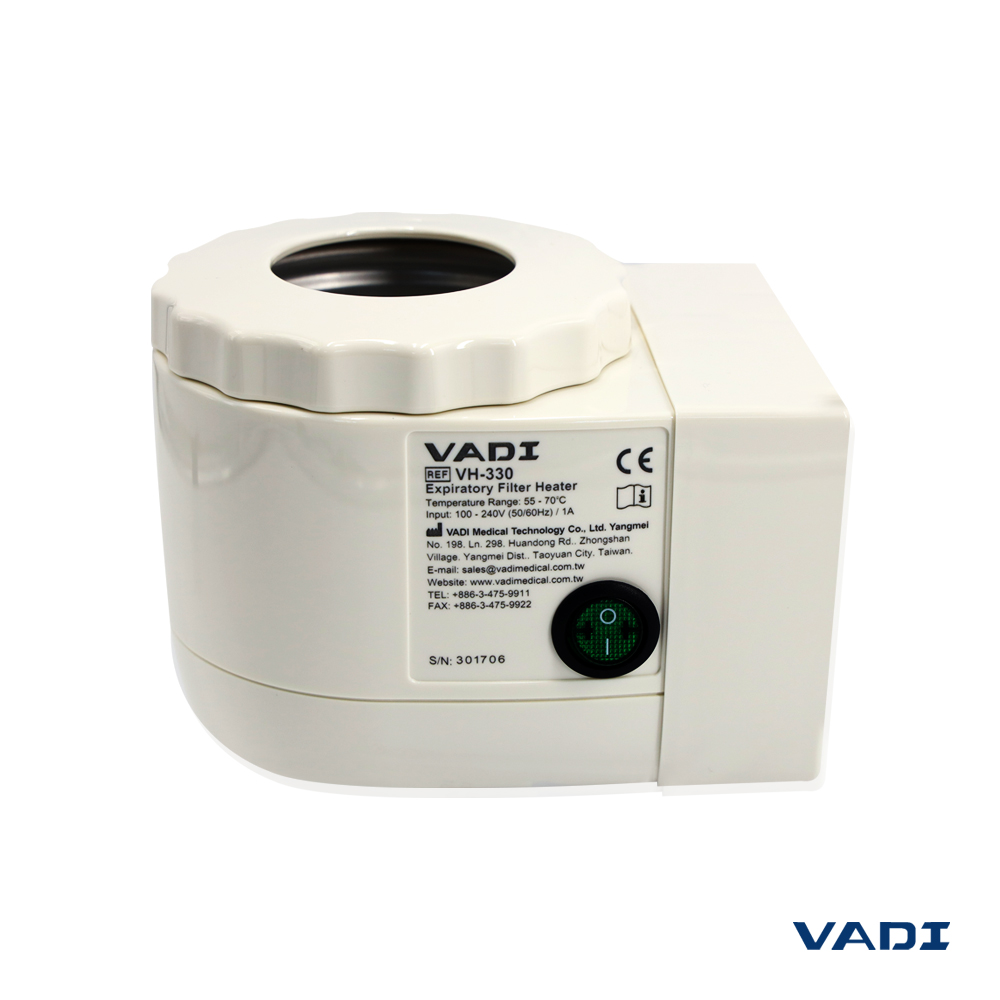

Expiratory Bacteria Filter Heater and Accessories
Part Number
- VH-330
Features
The heater is intended to use for heating the expiratory filter to prevent the
condensation accumulated in the filter when exhalation gas passes the filter.
Specifications
Dimensions Height = 16cmX10.5cmX11cm
Weight: 1000g
I/P 100-240Vac, 50/60Hz, 0.7-0.4A
Fuse: T3.15AL 250V
Power Output: 12V (DC)
Package: 6pcs/box
Performance Specification
Power of Heated Sleeve for heating the filter: 20W
Power of Heating Wire: 7.5W (For 45cm Heating Wire)
Temperature Range at Sleeve: 55-70℃ ±3℃ @12LPM
Temperature Range at Heated Wire: ≦70℃
Warm-up Time <= 30min
Operation Environment Temperature and Pressure
18 to 26 ºC, 700 to 1060 hPa
Related Product
800-51600 Disposable Bacteria Filter (Click Here)
800-51500 Reusable Bacteria Filter (Click Here)

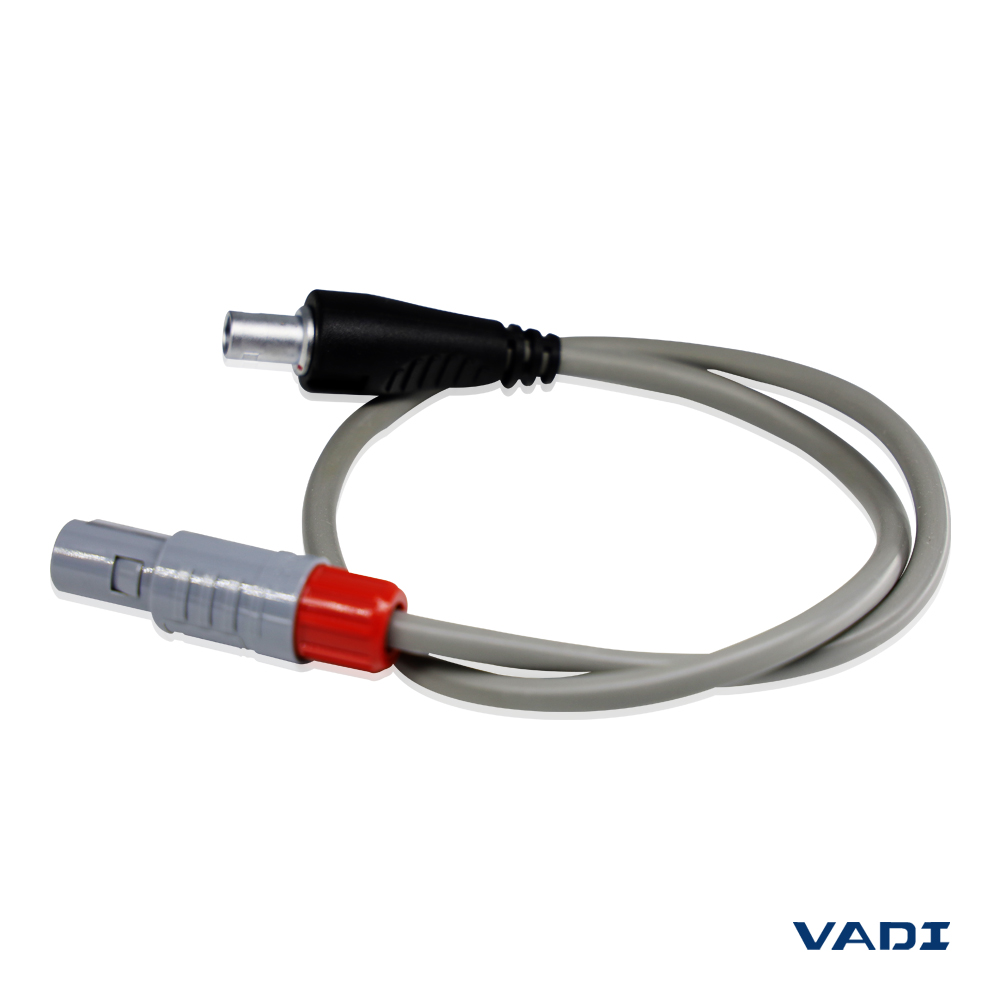

VH30101 Power Adaptor (Click Here)

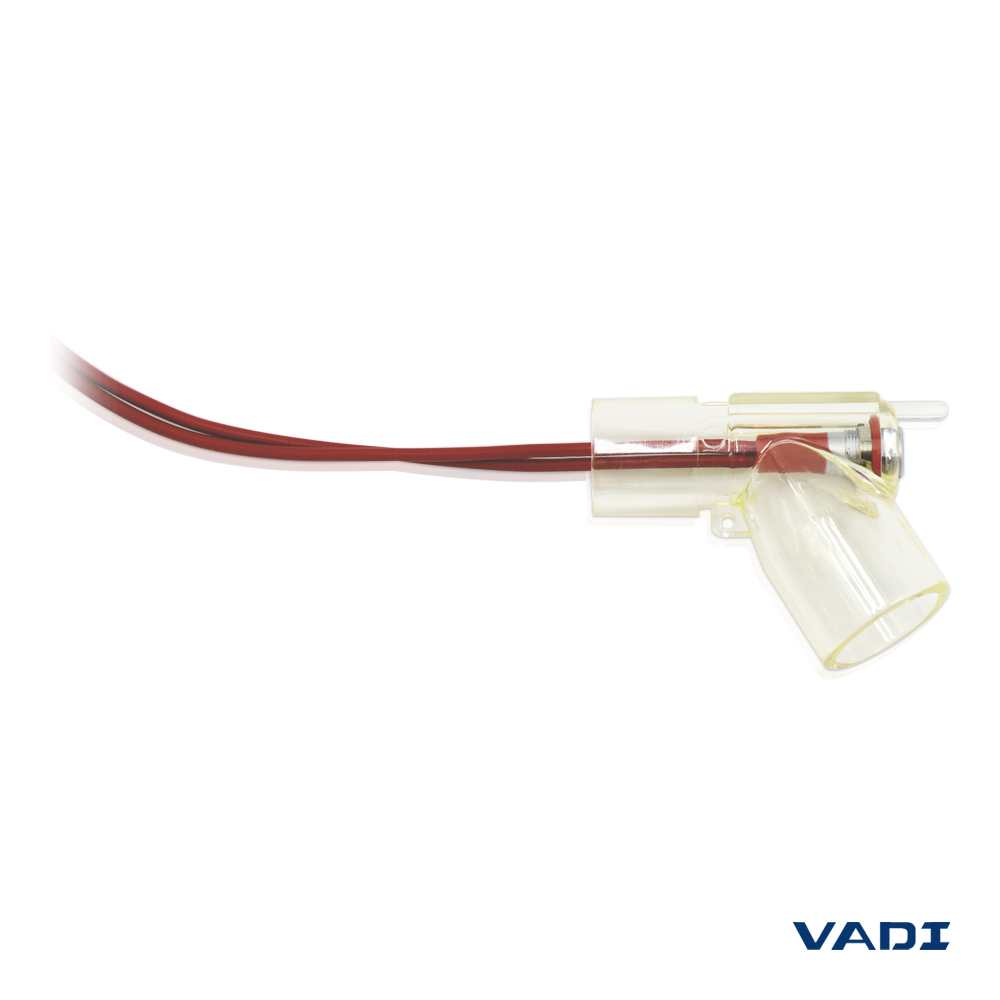

900045 Reusable Heater Wire (Click Here)
